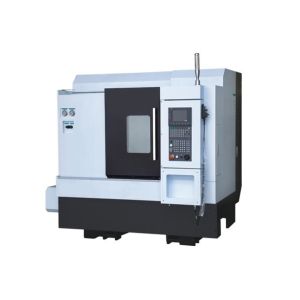

Turning Milling Compound Machine With Y-Axis Inclined Bed CCX-52Y

Product Categories

QINGDAO C AND C INTERNATIONAL TRADE CO., LTD

Contact Now

Brand Name : ARM

Model Number : CCX-52Y

Certification : CE

Place of Origin : China

MOQ : 1 set

Price : USD30000

Payment Terms : T/T, L/C

Supply Ability : 15 Sets per month

Delivery Time : 40 Days

Packaging Details : wooden case

Spindle moter power : 7.5/11 servo motor

After-sales service provided : Video technical support/Online technical support

Weight : 4000KGS

CNC or not : CNC

Main spindle speed : 4500rpm

Dimension(l*w*h) : 2000(2265)mm*1700mm*2075(excluding chip convetor)

Type : Turning milling compound machine

Numerical control system : New generation 22tb

Contact Now

Main technical parameters

Items	Unit	Parameter
Maximum turning diameter on bed	mm	Φ600
Maximum machining diameter	mm	Φ200
Maximum Z-direction travel	mm	550
Maximum X-direction travel	mm	160(radius)
Maximum Y-direction travel	mm	100(±50)
Maximum machining shaft length (chuck + tailstock)	mm	Within 300 (distance from chuck end to turret end face)
Maximum speed	m/min	X:30 Y:30 Z:30
Diameter of spindle through hole	mm	Φ66(Φ79 optional)
Spindle motor power	kw	7.5/11 Servo Motor
Nose type for spindle unit	-	A2-6
Spindle speed	rpm	4500
Model of power turret	-	80-12T
Square dimension of cylindrical cutter	mm	25*25
Boring tool bar dimensions	mm	Φ32
Specification of power tool holder	-	BMT55
Maximum stroke of tailstock sleeve	mm	90
Diameter of tailstock sleeve	mm	Φ70
Taper of inner hole of tailstock sleeve	mt	NO.4
Repeat positioning accuracy	mm	0.003
Chuck specification: spindle / sub spindle	mm	Φ200(8 inches)
Machine weight	kgs	≈4000
Machine tool dimensions(LWh)	mm	About 2000(2265)17002075(excluding chip convetor)

Main configurations

Projects	Brand	Origin
Numerical control system	New generation 22tb	Taiwan
Bus servo driver	New generation original	Taiwan
10. Z, y, b axis absolute value servo motor	New generation original	Taiwan
Main servo motor (including magnetic ring encoder)	New generation original	Taiwan
A2-6 spindle unit (4500 revolutions)	SKF Bearing	Sweden
Track	Yintai	Taiwan
Ball screw (grade C3)	Yintai	Taiwan
Lead screw bearing	NSK/NTN	Japan
Main electrical components	Schneider	Germany
852 hollow rotary cylinder	Bedford	China mainland
8-inch hollow hydraulic three jaw chuck	Bedford	China mainland
2kW Taiwan spline pump hydraulic station	Jingdun special	China mainland
Cooling water pump 450W	Nork	Taiwan investment
Automatic lubrication pump (gear pump)	Sheng Xiang	Taiwan investment
Inner guard	Central / Hongwang	Taiwan investment
Screw coupling	Hongwang	Taiwan
Y-axis lifting 80-12t power turret	Lianchen	Taiwan
Power turret output motor and drive	New generation original	Taiwan
Heat exchanger	Jingwo	China mainland
Hand wheel	Zhehong	China mainland
Foot switch	Tiande	Taiwan
Switching power supply	Mingwei	Taiwan
Button	Congratulatory message	Taiwan
Hydraulic disc brake	Dongpei	Taiwan

Turning Milling Compound Machine With Y-Axis Inclined Bed CCX-52Y
